Halifax County, Virginia
Spanning the Staunton River
(See aerial view)

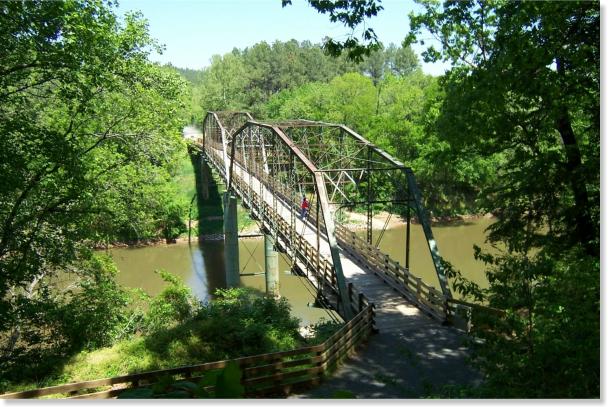

It is a magnificent through-truss bridge with a long entrance ramp on the Charlotte County entrance. The entrance on the Halifax County side is on a winding road along a cliff. The total bridge length is 692'. To the left is a concrete boat landing and parking area.
The bridge was closed to all traffic in 1999 but reopened in 2005 thanks to the efforts of the Clarkton Bridge Alliance. The bridge was restored and is now a protected scenic landmark.
See Gazette-Virginian news stories:
● Clarkton Bridge Granted 120-Day Reprieve From Demolition , June 4, 2003.
● In serious disrepair, century-old bridge would require millions in overhaul, Oct 19, 2016
● End of the road nears for historic Clarkton Bridge, Jun 23, 2017

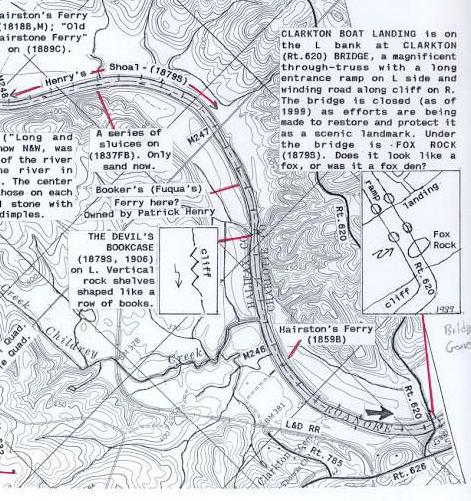

Chart from Dr. Bill Trout's Staunton River Atlas
The Clarkton Bridge derives its name from the Clark family, their plantation, and the village of the same name. There do not appear to have been any earlier bridges, ferries, or fords at this exact location. John Clark was a wealthy landowner who lived near Randolph in Halifax County. On his death in 1827, he left an estate of half a million dollars and a provision in his will to purchase plantations for his children. His son, Charles Adophus Clark (1821-1859), bought the "Rosebank" plantation on the Staunton River in Halifax County from the Yuille family; it was the only river plantation available at the time. Just before he married Eliza Ann Spraggins (1821-1897) in 1846, Charles Clark built "Hovelock" on the crest of a ridge about a mile and a quarter from the river (on present County Road 632) (Edmund [undated]: 1 19-120).
After Charles Clark died in 1858, his widow, Eliza, managed the estate until it was inherited by their son, Thomas (1851-1919). Thomas added nearly 400 acres of land on both the Charlotte and Halifax sides of the Staunton River to the 5,600 acres he had inherited, making the plantation one of the largest bright tobacco farms in Halifax County. Com and cattle were also raised on the farm. Thomas Clark conveyed the Lynchburg and Durham Railroad (present Norfolk and Western Railway) a right-of-way through his plantation in 1889 in exchange for the construction of a station and express office. At his request, the station was named Clarkton and he also changed the name of his house to Clarkton. Prior to the railroad, the Danville to Richmond stagecoach had passed through Clarkton on its way to the Staunton River crossing at Coles Ferry.
In the decades before the Great Depression, the village of Clarkton was a place of considerable activity. The Guthrie brothers ran a large general store, and a post office as well as the railroad depot were also located in the village. Following Thomas Clark's death in 1919, his widow, Grace, endowed St. Thomas Episcopal Church and a community center in Clarkton. In 1938, thirty-one tenant families were still living on the Clarkton plantation. The Clarkton Depot went out of service in the late 1950s, and the post office moved, but a general store still remains.
F.G. Baldwin, J. Edward Baldwin, and L.D. Martin were commissioned in Halifax County Court's April term, 1900, and George R. Hannah, G.W. Berkley, and S.C. Daniel were commissioned in Charlotte County Court's June term, 1900, to determine whether a new bridge should be built across the Staunton River near Clarkton. The site selected for the bridge, known as "Rock Bluff,' was located about one-half mile below Coles Ferry. It was felt that the bridge would benefit the area by inducing more people to locate to these sections of the counties, thereby increasing land values.
On January 8, 1901, the County Court followed the bridge commissioners' recommendations and authorized construction of the bridge. Charlotte County, Halifax County, and the Norfolk and Western Railway Company would each contribute $2,000 toward construction costs, with an additional $1,940 to be raised by private subscription. The Norfolk and Western Railway agreed to assist further in the bridge's construction by shipping all bridge material to the work site free of charge. The Virginia Bridge & Iron Company, of Roanoke, Virginia, was awarded the contract for the bridge. The bridge was to consist of two spans, each one hundred fifty feet in length, and two steel tubular piers set on solid rock with a horizontal surface. The Virginia Bridge & Iron Company also proposed to construct a crib protection below the low water mark for the river piers. Work was to be completed within six months of approval of the contract.
By a legislative act approved on February 1, 1901, the Charlotte County Board of Supervisors was authorized to borrow money to pay for construction of the bridge by issuing bonds. In December of 1901, the Charlotte County Treasurer escrowed funds for bridge construction, indicating that the work could begin. One hundred dollars was paid to have a road constructed to the bridge on the Charlotte County side of the bridge. S.P. Daniel, an engineer/architect, was commissioned to superintend construction of the iron bridge.
Bridge construction began on October 1, 1901, and the bridge was completed and ready for inspection on December 25, 1901. However, before the bridge was formally accepted by the county, a major flood occurred. The flood undermined the concrete in the center pier and washed away the approaches.
In February 1902, Daniel reported that the damage resulting from the flood had revealed defects in the bridge's construction. The bridge pier nearest the Charlotte County side of the river was a hollow iron caisson, seven feet in diameter, into which was inserted a five-foot iron pier surrounded by cement. Daniel described the cement as being "of very poor quality." The pier had sunk, causing the bridge to twist upstream approximately three feet, breaking one tie-rod and possibly weakening others. Daniel believed that the central pier had failed because it had not been sunk to solid rock and was also incorrectly designed. He contended that the fifteen-foot spacing between the two sets of piers was not sufficient to prevent the bridge's collapse during a period of high water and wind. Daniel suggested that the piers be placed twenty-five feet apart instead of fifteen feet, and further suggested that the county conduct a thorough load-bearing test before accepting the bridge.
The Virginia Bridge & Iron Company had already begun repairing the flood-damaged bridge by the middle of January 1902, using a work force of between three and twelve men. Commissioner Daniel reported that the work proceeded slowly because of continuing floods and also due to the company's general mismanagement of the project. On June 12, 1902, it was reported that the repairs to the foundations and piers were nearly completed, but that the approaches to the bridge remained unfinished. The rebuilt bridge was completed and ready for service on June 20, 1902. As per Daniel's recommendation, a load-bearing test was carried out prior to the bridge's acceptance. A load of 120,000 pounds per span was applied and the bridge passed inspection.
By 1906 it was noted that the Clarkton Bridge was much in need of having the accumulated rust scraped off, being painted, and being "screwed up." C.E. Walker was hired to do the job for $125, the cost to be shared by Charlotte and Halifax counties. The bridge was subsequently painted by the counties at least three more times (1912, 1922, and 1927).
In 1907 the Clarkton Bridge was condemned as too dangerous to cross. A.B. Rice, G.W. Berkley, and W.D. Clark were commissioned to find the "best and cheapest way" to repair the bridge approaches. No action on the approaches was taken for several years, until a new public road from Coles Ferry to the Clarkton Bridge was laid out in 1911. The contract to construct a new steel approach on the Halifax side, with a new floor and steel handrails, was awarded to Austin Brothers Bridge Company. No location for this company was given in the court records; however, a firm called the Austin Bridge Company was located in Chicago at one time. The job called for the replacement of steel stringers and hand rails on the main bridge and repainting of the trusses and piers. The total cost of $3,149 was to be borne proportionately by Charlotte and Halifax counties according to their respective 1910 population census figures. A.B. Rice was given the commission of inspecting the concrete work during construction and making a bridge inspection upon completion of the project.
Bridge repairs were underway in the early part of 1912. When the necessity to replace the approach on the Charlotte County side became evident, A.B. Rice was commissioned to have a "wooden approach of three spans on concrete pillows" constructed. In June 1912, Rice reported that Austin Brothers had failed to put in foundations according to the contract. The State Highway Commissioner was requested to send a State Bridge Engineer to inspect the approach and its foundation. Further unspecified repairs to the bridge were undertaken by the counties in 1919 and 1923.
In 1940, repairs were made to the floor systems of the two truss spans. The floor beams were reinforced with steel braces, which structurally converted the beams into king post trusses. New floor stringers and decldng were also installed.
In 1974 the weight posting for the bridge was lowered from ten tons to five tons due to deteriorated structural members. Inspections of the bridge in 1984 revealed continued corrosion and sectional loss of the structural members, as well as evidence of overloading, prompting a reduction of the weight posting to three tons. A 1988 inspection found the bridge to be in poor condition overall, with further sectional loss evident throughout the structural steel members, bowed end posts, sagging deck sections, and a leaning main span pier.
The Parker Truss
The Parker truss was introduced by C.H. Parker in the 1870s. Parker utilized a quadrilateral truss of the Pratt type with posts in compression and diagonals in tension, but varied the length of the posts based on the strains exerted on them at a given location. The center panels, where the strains were the greatest, required the tallest panels, with the posts becoming successively shorter toward the ends of the bridge. The primary advantage of the design was a reduction in the weight of the bridge, or dead load, permitting longer spans without increasing the sectional area of the bridge's structural members. A savings in material cost was a direct result; however, this advantage was largely offset by the cost of having to fabricate a greater variety of members. The most economical compromise was struck with a modification of the design that limited the number of variations in the slope of the top chord to three, for a total of five polygonal segments. This variation of the Parker truss is called a Camelback truss. In general, the Parker or Camelback truss becomes economical for bridges over 160' long.
Steel Cylinder Piers
According to John Waddell, a preeminent authority on bridges in the early twentieth century, concrete-filled steel cylinder piers "used to be the most common kind of pier in America". Riveted cylinder piers were the predecessor of modem pipe piers, which remain in frequent use. The cylinders were originally constructed of cast and wrought iron; steel was used after about 1890. Iron or steel sheets, from 3/8" to 5/8" thick and between 4' and 8' wide, were rolled into cylindrical sections varying in diameter from 4' to 15'. The cylinder ends were overlapped several inches and joined with rivets. The cylinders were joined end to end to achieve the desired pier height. The seams were riveted and usually overlapped, although butt seams with an internal riveted band were used when higher compressive strength was required. When the piers rested on rock, they were anchored by drilling the rock and grouting-in steel rods to project up into the concrete in the cylinder. When piers were to be placed on soft bottoms, several wood pilings were driven in a tight cluster to project up into the cylinder. TaU piers, or piers carrying extreme loads, often rested on footings constructed of concrete-filled cylinders two or three times the diameter of the pier.
The Virginia Bridge and Iron Company
The Virginia Bridge and Iron Company was founded in Roanoke in 1889 as the American Bridge Company, by P.K. Wentworth, I.E. Hunter, and C.L. Michael. In 1895 the company was incorporated as the Virginia Bridge & Iron Company (VBI) and capitalized with $50,000.
By 1904, VBI was the largest steel fabricating company in the south, with a capacity of 12,000 tons annually. The company's product line consisted of bridges, turntables, warehouse factory buildings, and general structural iron and steel work. The company employed 175 men in the shops and 150 men in the erecting department. The plant covered 10.5 acres and included a bridge shop 300' by 80', a large girder shop, and several smaller buildings. The plant was located on the lines of the Norfolk and Western Railroad and the Southern Railroad. The principals of VBI at the time were W.E. Robertson, President; C.E. Michael, Secretary; T.T. Fishbum, Treasurer; and C.E. Hamlin, Contracting Engineer.
Growth of the company continued through the early twentieth century, and plants were built in Memphis in 1908 and in Birmingham in 1922. By 1934, VBI had 800 employees and an annual production output valued at 5.4 million dollars. Company offices were located in Birmingham, Memphis, Atlanta, New York, New Orleans, Los Angeles, Charlotte (North Carolina), Dallas, and El Paso. In 1936 VBI became a wholly owned subsidiary of the Tennessee Coal, Iron and Railroad Company, the largest producer of steel in the south.
In 1952, VBI was merged into the American Bridge Company, a subsidiary of U.S. Steel Corporation and the largest bridge company in the United States. VBI's facility in Roanoke served as the headquarters for the Southern Division of the American Bridge Company until 1965, when the plant was closed.
According to A Survey and Photographic Inventory of Metal Truss Bridges in Virginia, 1865 - 1932, a study conducted by the VDOT Research Council in 1973, the Virginia Bridge & Iron Company built a total of sixty-five truss bridges in Virginia during the period researched. The company built five other truss bridges in addition to the Clarkton Bridge within the Lynchburg VDOT Construction District. One other VBI bridge, Waterloo Bridge, in Culpeper County, is included among the seventeen historic metal truss bridges recorded by VDOT in 1993-1994, of which this report is a part.
(BRIDGE NO. 6902)
HAER No. VA-108
The Clarkton Bridge was recorded in 1993-1994 by the Cultural Resource Group of Louis Berger & Associates, Inc., Richmond, Virginia, for the Virginia Department of Transportation (VDOT). The recordation was undertaken pursuant to provisions of a Programmatic Memorandum of Agreement (Draft) among the Federal Highway Administration, VDOT, the Virginia SHPO and the Advisory Council on Historic Preservation concerning management of historic metal truss bridges in Virginia. Project personnel included Richard M. CaseHa, Architectural Historian; Ingrid Wuebber, Historian; and Bruce Harms, Photographer.
